Description
YS4510 Plus spectrophotometer with 45/0 geometrical optics structure( 45 ring-shaped illumination ,vertical viewing), comply with C I E N o . 1 5. Adopting concave grating light splitting method. accurately measure the reflectivity and various chromaticity data of samples. users can customize the measurement aperture(Φ 8 / Φ 4 / Φ 2 m m) according to the sample measuring demands, meet the industry accurate color measurement and quality control.
Share

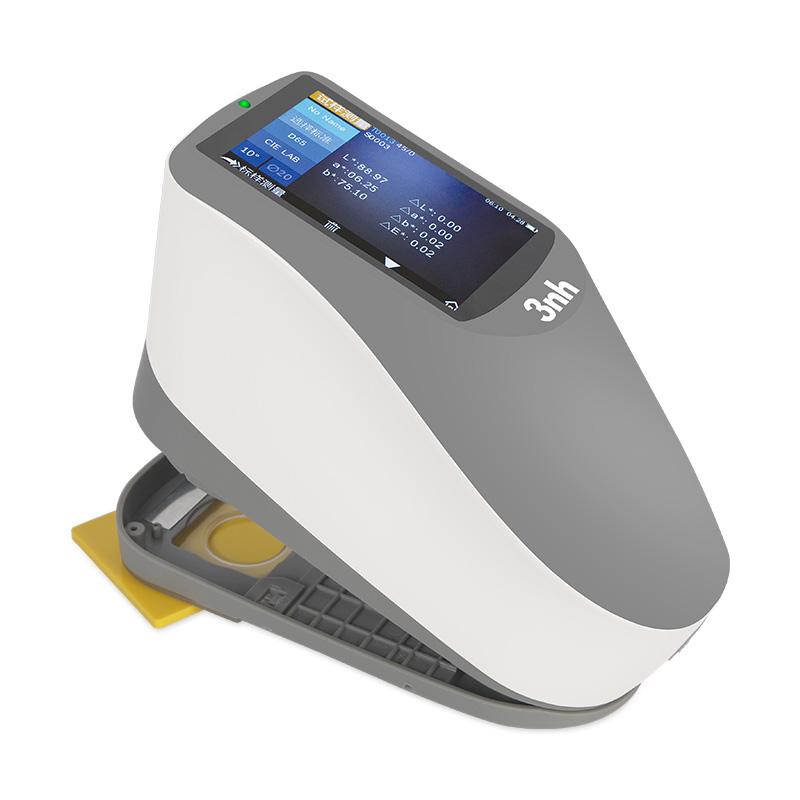

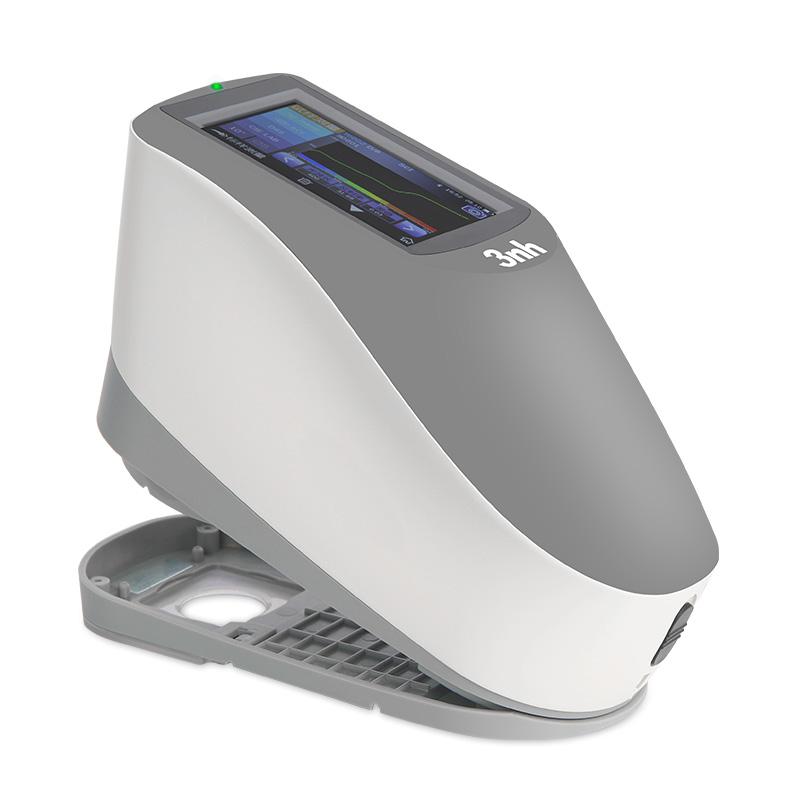

YS4510 Plus 45/0 spectrophotometer
Technical Specification
Model: YS4510 Plus 45/0 Spectrophotometer
Illumination/Observation system: 45/0(45 ring-shaped illumination, vertical viewing); Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893、GB/T 18833
Features: Common spectrophotometer with customized one aperture, like 8mm aperture and apply in paints, inks, textiles, garments, printing and dyeing, printing etc. industries for color transfer and quality control.
Integrating Sphere Size: Φ48mm
Light Source: Combined LED Light
Spectral separation device: Concave Grating
Detector: 256 Image Element Double Array CMOS Image Sensor
Wavelength Range: 400~700nm
Wavelength Pitch: 10nm
Half Bandwidth: 10nm
Reflectance Range: 0~200%
Measuring Aperture: Customized One Aperture：MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm；SAV:Φ2mm/Φ3mm；
Color Space: CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,βxy
Color Difference Formula: ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE（Hunter）
Observer Angle: 2°/10°
Illuminant: D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30)
Display Data: Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measurement Time: About 1.5s
Size(L*W*H): 184*77*105mm
Weight: About 600g
Data memory: Standard 500 Pcs, Sample 20000 Pcs
Storage Environment: Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory: Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover.
