Description
A Paste Ink Proofer is a precision tool used in printing and packaging workflows to evaluate the color, consistency, and performance of paste inks before full-scale production. By producing controlled, uniform test proofs on a chosen substrate, the device allows printers, ink manufacturers, and quality-control teams to assess characteristics such as opacity, gloss, adhesion, and color match. This ensures that ink formulations meet required standards, reduces waste during press runs, and supports consistent, high-quality output across different printing processes.
Share

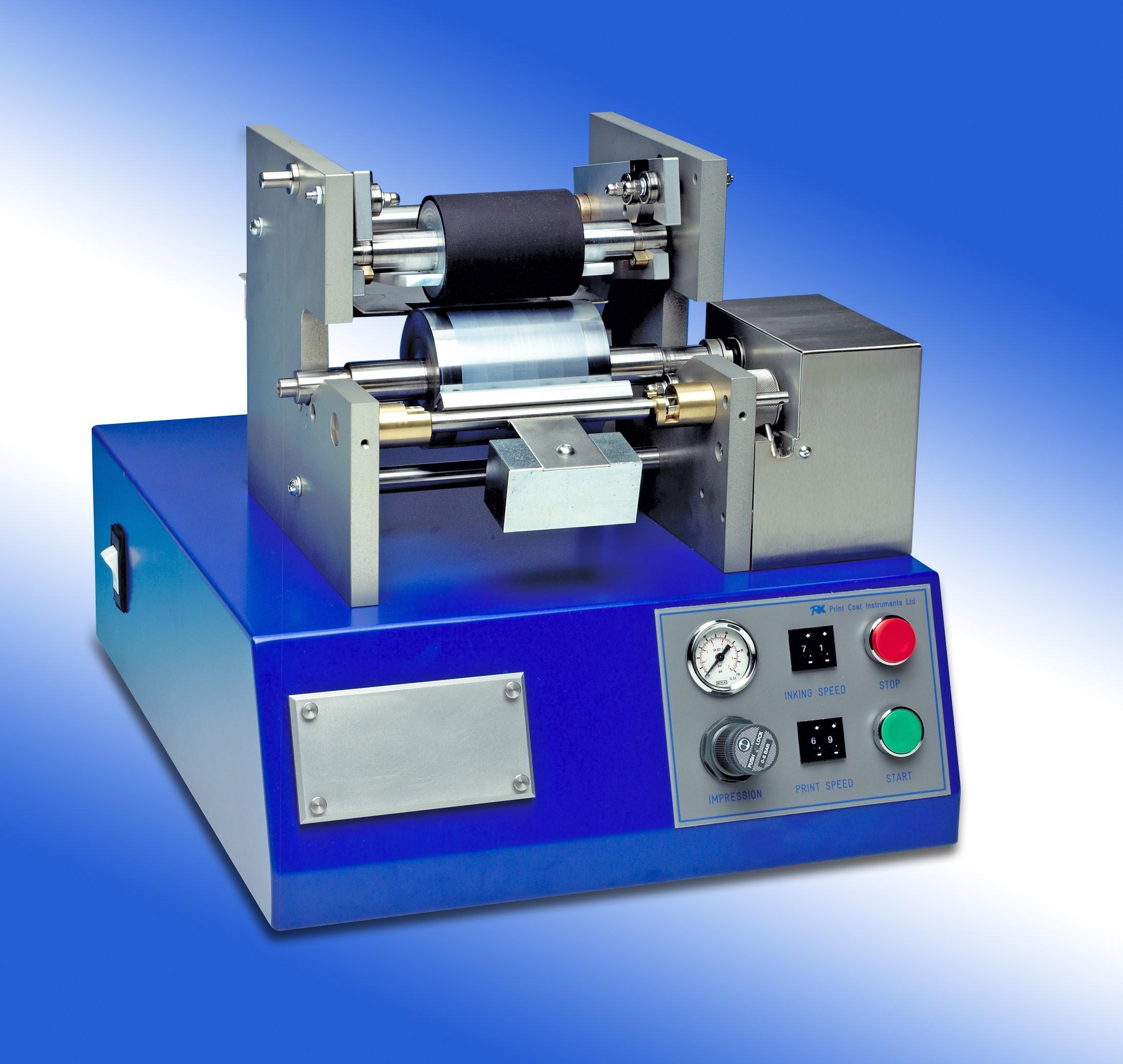

PASTE INK PROOFER
Technical Specification
MAIN FEATURES
Accurate proofs produced in a single operation
No messy weighing or measuring of inks, unlike other proofers
Two inks may be proofed simultaneously for comparison
Inking/cleaning cycle completed in only 2-3 minutes
Multiple proofs easily obtained using any substrate Reduces press down time
INK FILM
The ink film on the blanket roller is accurately metered by a screen engraved on the inking roller. The inking roller has a polished ceramic surface that is covered in uniform cells that have been engraved using a laser. The number and depth of these cells are accurately controlled and contain a constant volume of ink. The following table gives the approximate ink film weight applied when using a typical offset ink. All inking rollers are supplied with a proof and a record of the actual film applied using a typical offset ink. Inking rollers to give other ink films may be made to order. The ceramic surface is virtually indestructible in normal use and is therefore ideal for use as a “standard” for quality control purposes.
Roller Ref Density Film Weight
PIP.10 Light, ≈ 1.8
PIP.11 Medium ≈ 1.9
PIP.12 Dark ≈ 2,0
PIP.13 3 Bands Light/Medium/Dark
PASTE INK PROOFER SPECIFICATION
Substrate size: 124mm wide x 300mm long
Print size: 75mm x 245mm (Max)
Speed range: 5-40m/min
Printing pressure: 0-150 Newtons/cm
Blanket roller: 70° shore hardness, suitable for all types of paste inks
Services required: 110/120 or 230/250 volts
Footprint: 400mm x 400mm
Weight: 40kg
