Description
High quality proofs using gravure, gravure-offset or flexo inks are produced instantly using the K Printing Proofer. Featuring electronically engraved printing plates and variable printing speeds of up to 40m/min, this is an essential tool for all those involved in the manufacturing or use of liquid inks. Ideal for R & D and computer colour matching data, quality control and presentation samples. The K Printing Proofer is very easy to clean and all parts are solvent resistant. **Footprint:** 400 x 450mm **Weight:** From 21 Kgs **Rating:** 220 - 240V or 100 - 120V 50/60Hz Pneumatic version: 5.5 bar (80psi)
Share

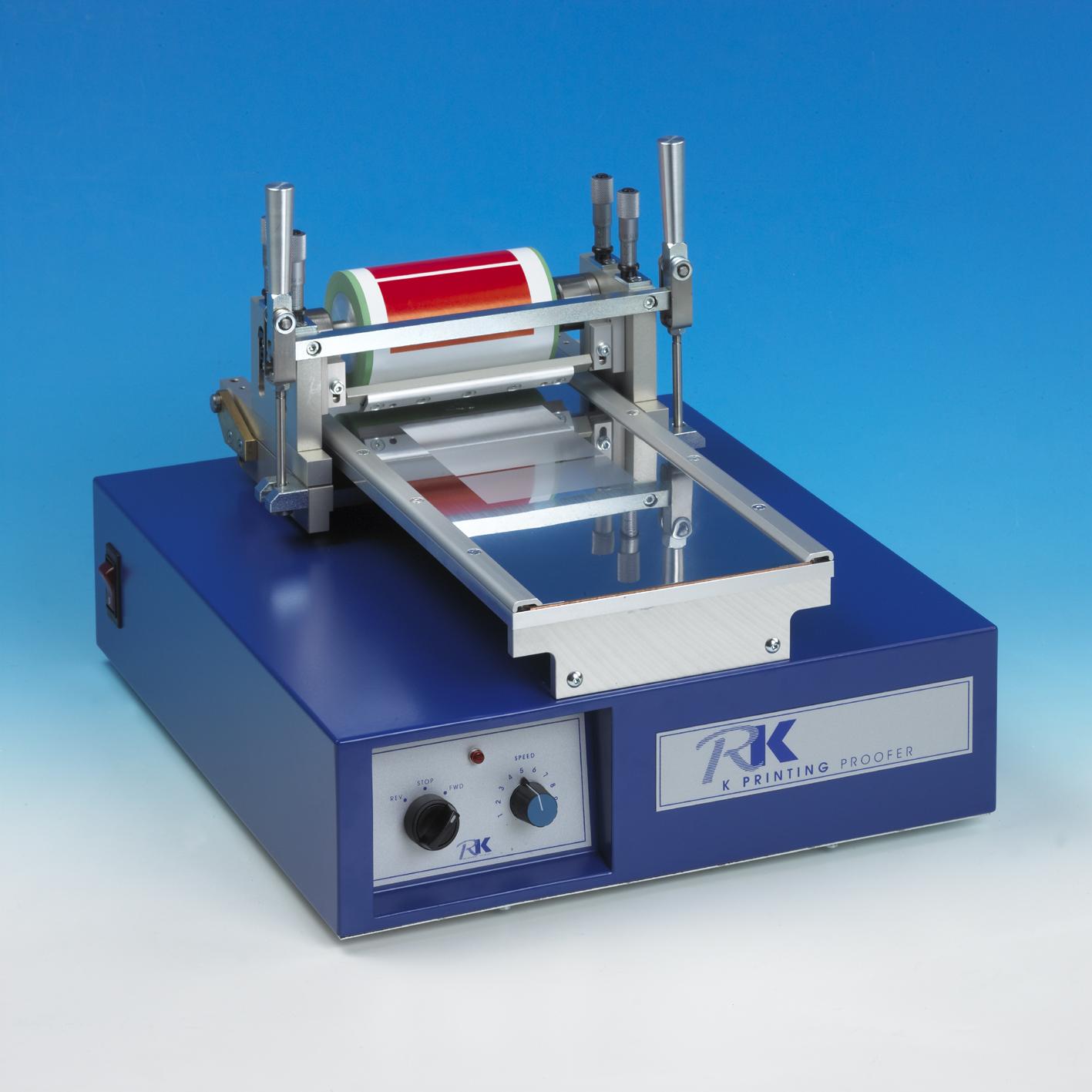

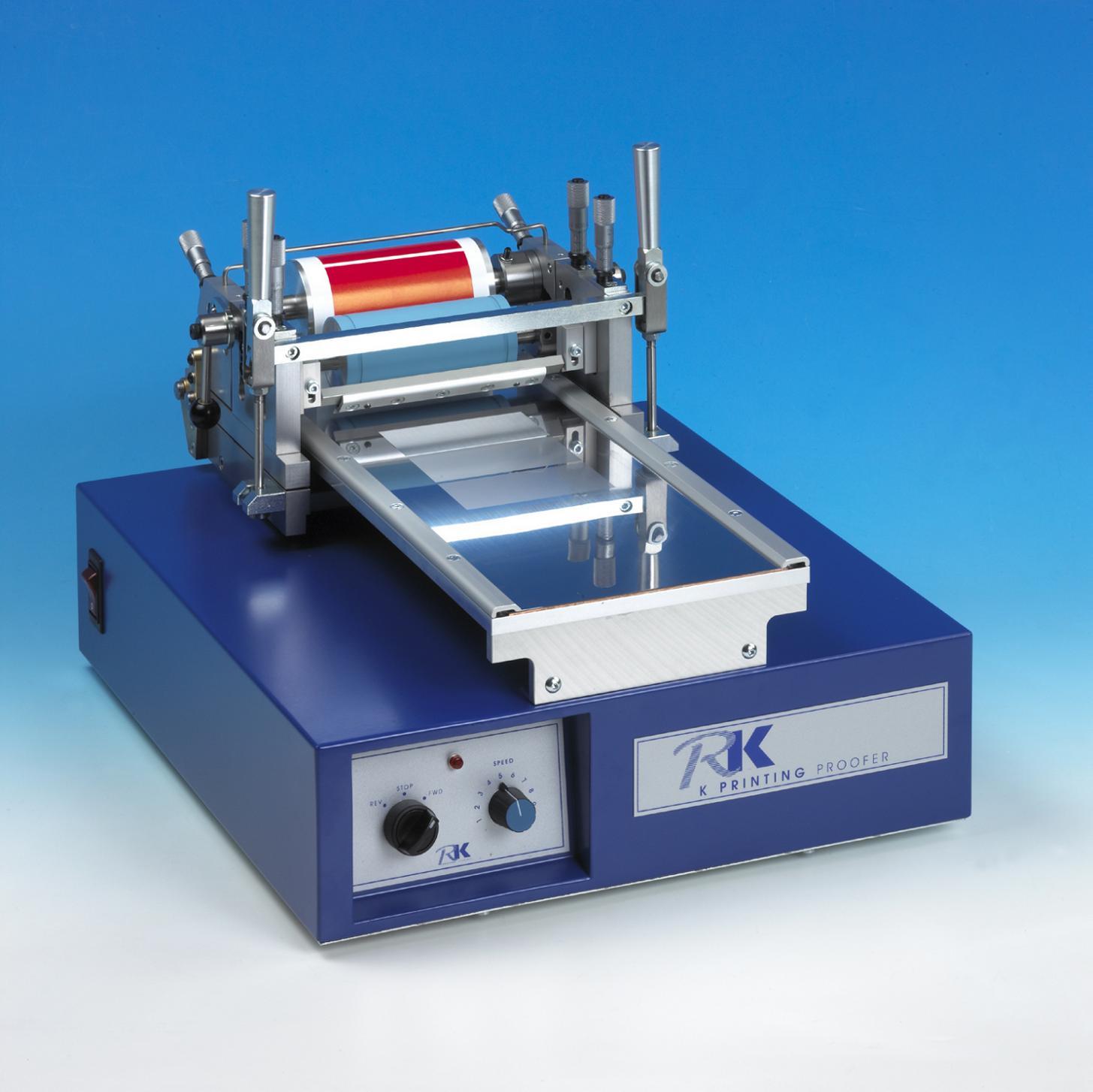

K Printing Proofer
Technical Specification
The illustration shows various proofs obtained with standard plates, details of which are as follows:
Solid Area Plate:
(KPP.10) 100 lines/inch (40 lines/cm) Density: 100%
(KPP.11) 150 lines/inch (60 lines/cm) Density: 100%
(KPP.12) 200 lines/inch (80 lines/cm) Density: 60%
Single 3 Wedge Plate
(KPP.13) 150 lines/inch (60 lines/cm)
Densities: 100-8
1 + 4 Wedge Plate
(KPP.14) 150 lines/inch (60 lines/cm)
Densities: Half area 90% and adjacent step wedges 100-90-80-70% (Not suitable for use with the flexo head)
Double 8 Wedge Plate:
(KPP.15) 150 lines/inch (60 lines/cm)
Densities: 100-95-90-85-80-75-70-60% (KPP.15a) 300 lines/inch (118 lines/cm)
Densities: 100-95-90-85-80-75-70-60% (KPP.15ab) 150 & 300 lines/inch Equivalent flexo anilox volumes 19 – 4cm³/m² when printed by gravure
Densities: 100-95-90-85-80-75-70-65-60%
Gravure Utility Plate
(KPP.18) 175 lines/inch (70 lines/cm)
Column 1: Solid area, density 100%
Column 2: Densities 100-90-80-70-60-50-40-30-20-10%
Column 3: Vignette 100-0%
