Description
YD5010 Grating Spectrophotometer Densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing; and it is able to customize single aperture Φ2mm，Φ4mm，Φ8mm. Under multiple color spaces, it can accurately measure various printing density indexes, color difference formulas and color indexes, and can meet the user's regular testing of various parameters.
Share

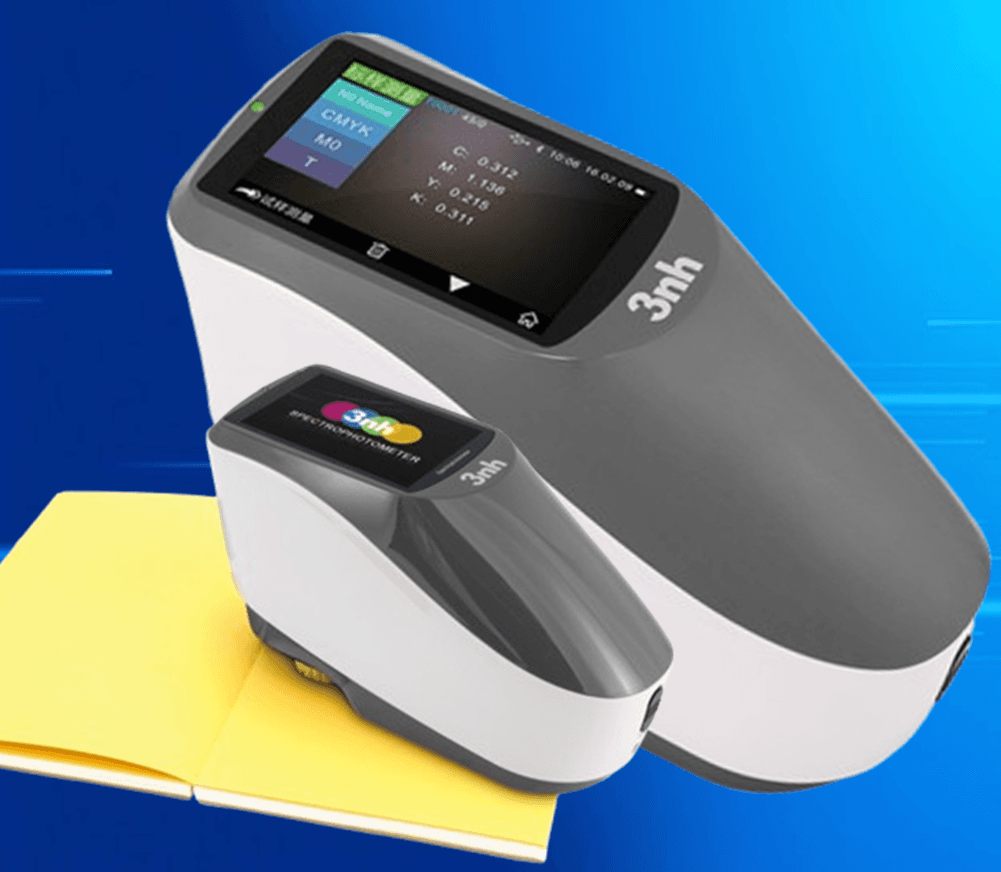

Spectrodensitometer YD5010
Technical Specification
Model: YD5010
Features: Common spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control; especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing; able to customize single aperture Φ2mm,Φ4mm,Φ8mm.
Light Source: Combined LED Light, UV Light
Detector: 256 Image Element Double Array CMOS Image Sensor
Wavelength Range: 400~700nm
Measurement Conditions: Compliance with ISO 13655 measurement conditions; M0 (CIE Light Soure A), M1 (CIE Light Soure D50), M2 (Excluding UV light source), M3 (M2+Polarized light filter)
Measurement aperture: Customized one aperture：Φ2mm,Φ4mm,Φ8mm optional
Color Spaces: CIE LAB, XYZ, Yxy, LCh
Color Difference Formula: ΔE*ab, ΔE*94, ΔE*00
Illuminants: A, C, D50, D55, D65, D75, F2, F7, F11, F12
Measurement Time: About 1.5s
Size(L*W*H): 184*77*105mm
Weight: About 600g
Power source: Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span: 5 years, more than 3 million times measurements
Display: 3.5-inch TFT color LCD, Capacitive Touch Screen
Data memory: 10000 pcs
Working Environment: Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment: Temperature: -20~50℃; Humidity: 0~85% (No Condensation)）
