Description
The TS4020 liquid spectrophotometer is a high-precision color analysis tool designed specifically for liquid chromaticity measurement using innovative core technology by 3nh. Adopting a D/0 optical structure, equipped with a full band LED light source and high-performance testing system, it provides a variety of chromaticity indicators, including transmittance, chromaticity, color difference, platinum cobalt index, Gardner, Saybolt index, petroleum color code, pharmacopoeia chromaticity, etc. It supports micro transmission measurement and has fast measurement speed. Widely used for chromaticity measurement needs in fields such as chemical industry, food and beverage, petrochemical industry, pharmaceutical industry, etc.
Share

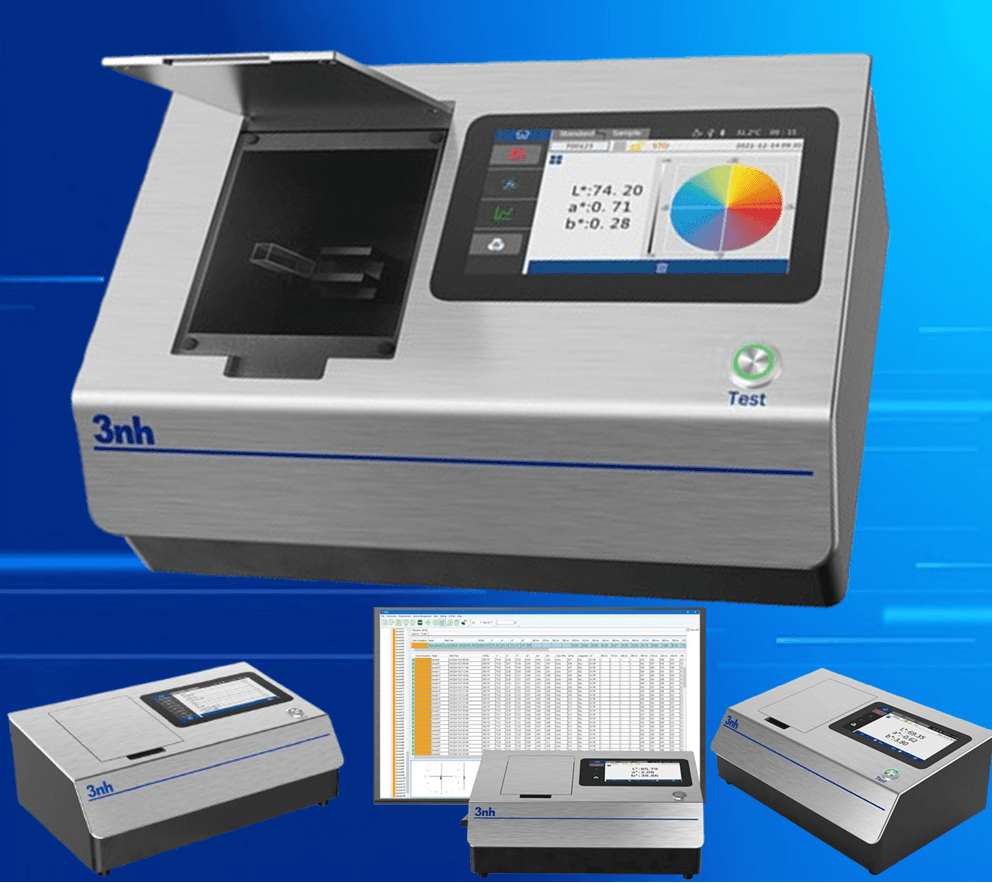

Liquid spectrophotometer TS4020
Technical Specification
Illumination: Transmission: D/0 (diffuse illumination, 0° Viewing); Approximately CIE15 stipulates 0/0 (parallel light illumination/0 degree reception); Comply with standards: ASTM D1003/1044, CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ASTM E308, DIN5033 Teil7
Characteristic: The national standard pharmacopoeia color measurement, glass processing, plastic processing, film, display screen processing, packaging industry, liquid medicine analysis and other industries are widely used in color analysis and transmittance testing, supporting trace transmittance measurement.
Integrating sphere size: Φ 40 mm
Light source: Combined full spectrum LED light source
Spectral method : Plat grating spectrometer
Sensor : Silicon photodiode array (dual row 40 groups)
Wavelength range: 360 ~780 nm
Wavelength interval: 10nm
Transmittance range: 0~200%
Measuring aperture: Transmission: Φ 10 mm
Color Space : CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, βxy, DIN Lab99 ,CMYK
Color difference formula: ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter),ΔE*CH
Observer Angle: 2°/10°
Measuring time: Fast mode: about 0.8s
Operating temperature range: 0~40°C (32~104°F)
Displayed Data: Spectrum/values, sample chromaticity value, color difference value/graph, chromaticity diagram, color simulation, pass/fail results, color offset
Illuminant Life Span: More than 3 million measurements in 5 years
Dimensions : Length x width x height = 370 x 300 x 200 mm
Weight : About 9.6kg
