Description
Zahn viscosity Cups are used for the measurment of viscosity of printing inks, paints and varnishes. Our viscosity cups are according to the American society for materials laboratory, paint and raw material standard ASTM Numbers D4212-93 standard test method of immersion viscosity cup of relevant regulations, combined with the actual production.
Share

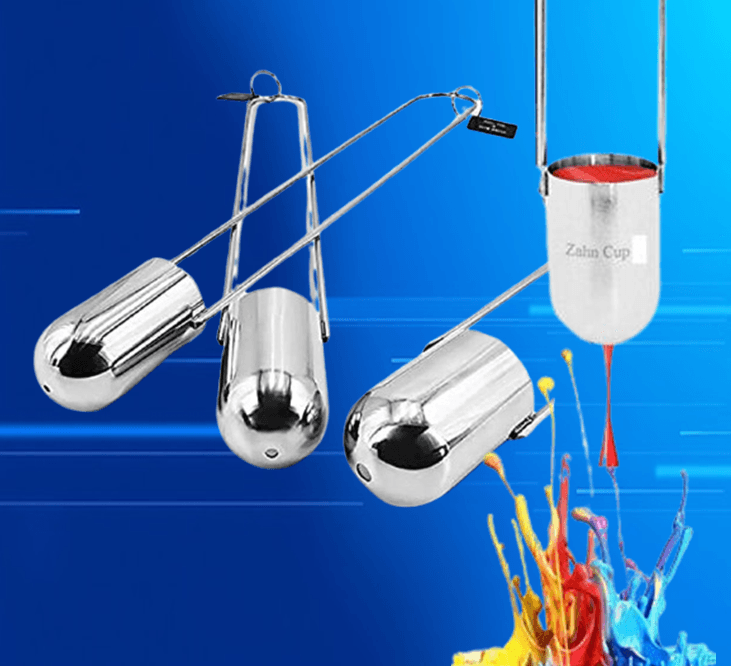

Zahn Ink Viscosity Cup
Technical Specification
Specification:
Zahn 1# 44ml Φ1.93mm 5-60cSt 35-80sec.
Zahn 2# 44ml Φ2.69mm 20-250cSt 20-80sec.
Zahn 3# 44ml Φ3.86mm 100-800cSt 20-80sec.
Zahn 4# 44ml Φ4.39mm 200-1200cSt 20-80sec.
Zahn 5# 44ml Φ5.41mm 400-1800cSt 20-80sec.
Weight: 0.14Kg
Dimensions: 380 × 70 × 80mm (L × W × H)
Materials : Stainless Steel
